V3642B-1EC2EHC - Vertical Air Handler, SCB, Variable Speed, 120V - 208/230V, 4 Row Coil, (HP) with HWC, E-Coated

Ships in 31x26x46 inch pkg; 275 lbs

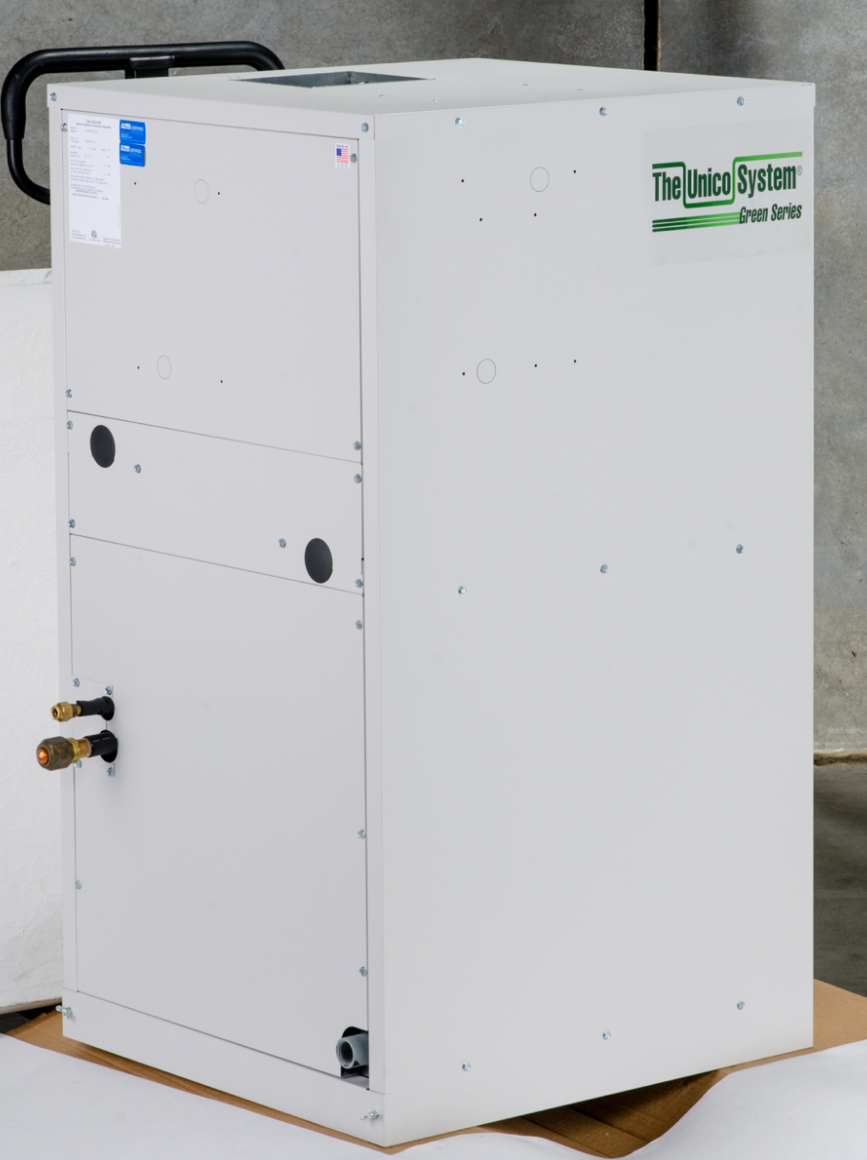

Unico V3642B-1EC2EHC 3-3.5 Ton Vertical AHU

Description:

• This is our Coated V-Series one piece fan coil unit for vertical up flow applications in a closet or basement
• This model is our 3 to 3.5 ton model with 230 volt ECM blower and heat pump DX coil which includes a R410A TXV and a hot water coil
• It can be connected to a 3 to 3.5 ton heat pump unit from a third party

Features:

• Easy service EC Motor (Variable Speed)
• Removable access panels for ease of service
• ASHRAE 62.2-2010 ventilation mode
• Use as cooling only or heat pump
• Optional hot water coil for heating
• Heavy-duty closed cell insulation (no exposed fiberglass insulation)
• Includes (shipped loose): R-410A TXV, Condensate trap, S.M.A.R.T. control board
