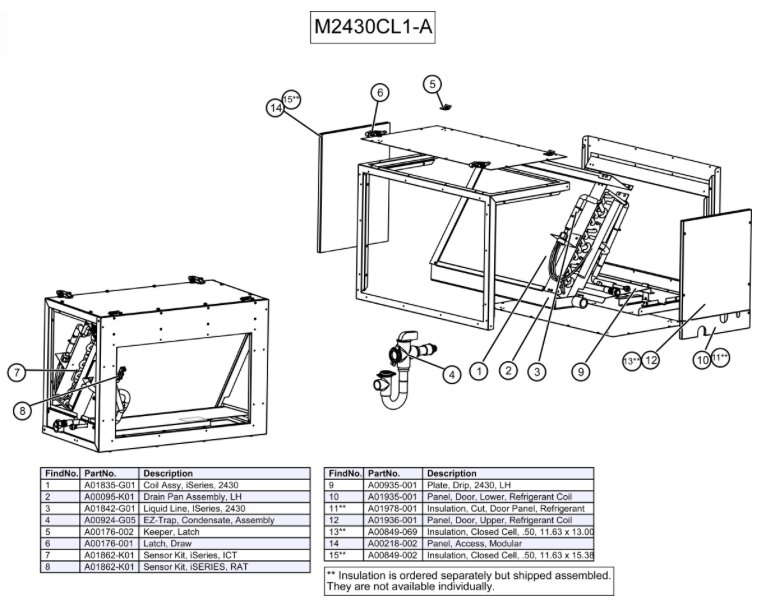

M2430CL1-A - Unico Module, Heat Pump Coil iSeries Inverter
SHIPPING
DIRECT SHIP USA/CANADA (FROM MISSOURI)
M2430CL1-A — a Unico module — heat-pump coil iSeries inverter.
Key features
- iSeries 2 to 2.5 ton left hand 4 row refrigerant coil module without TXV. Stainless steel primary drain pan included. Used with iSeries inverter heat pumps.
- 30,000 Btu/hr (8.7 kW).
Specifications
| Model Series | iSeries, M-Series |
|---|---|
| Nominal Capacity | 30,000 Btu/hr (8.7 kW) |
| Tonnage | 2-Ton, 2.5-Ton |
| Installation Orientation | Horizontal, Vertical Upflow |
| Coil Type | Refrigerant |
| Motor Type | PSC, EC |
| Refrigerant Type | R-410A |
| Material | Multiple |
| Spare Part Type | Coil |
| Certifications | UL |
| Dimensions | 29 in x 16 in x 20 in |
| Weight | 60 lb |
Documents
- M2430CL1-A Coil Dimensional Data (PDF)
- Submittal Sheet (PDF)
- M-Series Heat Pump Installation Supplement (Bulletin 30-024) (PDF)
- Unico_refrigerant_coil_specifications (PDF)
- M3036CL1-H Installation Manual (PDF)
- Technote 115 — Air Cleaning and Filtering Devices (PDF)
Ships in 29x16x20 in pkg; 60 lb
