M3642CL1-BA-R - 3.0-3.5 Ton Refrigerant Coil Module
SHIPPING
DIRECT SHIP USA/CANADA (FROM MISSOURI)

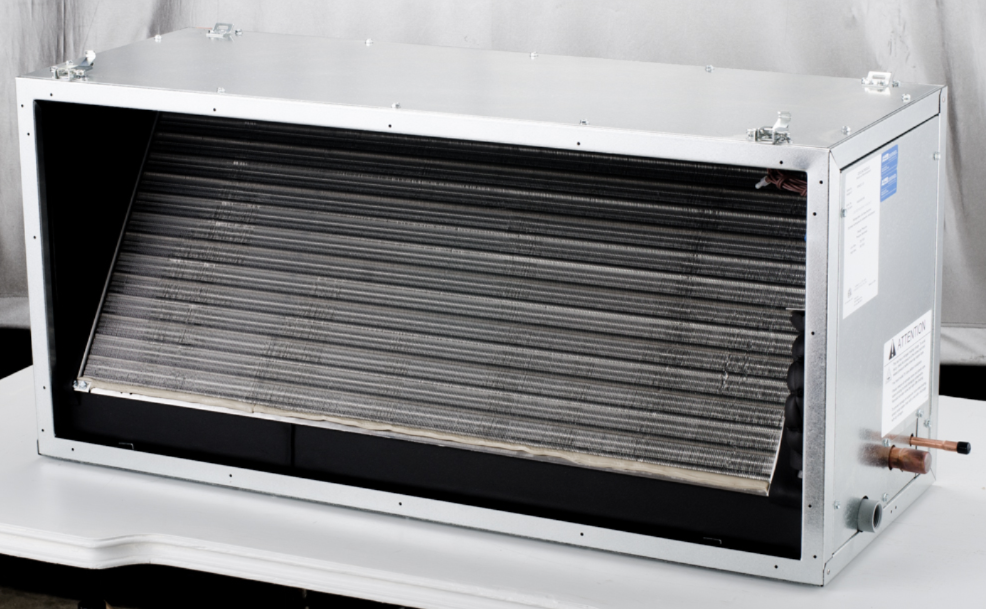

M3642CL1-BA-R — a 4-row aluminum refrigerant coil module for AC and heat-pump systems — intended for indoor-coil replacement only.
Key features
- This is the 3 to 3.5 ton Module, Refrigerant Coil (4 Row) (AC/HP), Aluminum, for indoor coil replacement only.
- Unico System designed and built evaporator coil modules can be easily installed with the matching Unico System blower modules.
Specifications
| Model Series | M-Series |
|---|---|
| Nominal Capacity | 42,000 Btu/hr (12.3 kW) |
| Tonnage | 3-3.5 Ton |
| Installation Orientation | Horizontal, Vertical Upflow |
| Coil Type | Refrigerant |
| Motor Type | PSC, EC |
| Material | Multiple |
| Spare Part Type | Coil |
| Certifications | UL |
| Dimensions | 16 in x 42 in x 20 in |
| Weight | 100 lb |
Documents
- Unico_refrigerant_coil_specifications (PDF)
- Submittal Sheet (PDF)
- M-Series Heat Pump Installation Supplement (Bulletin 30-024) (PDF)

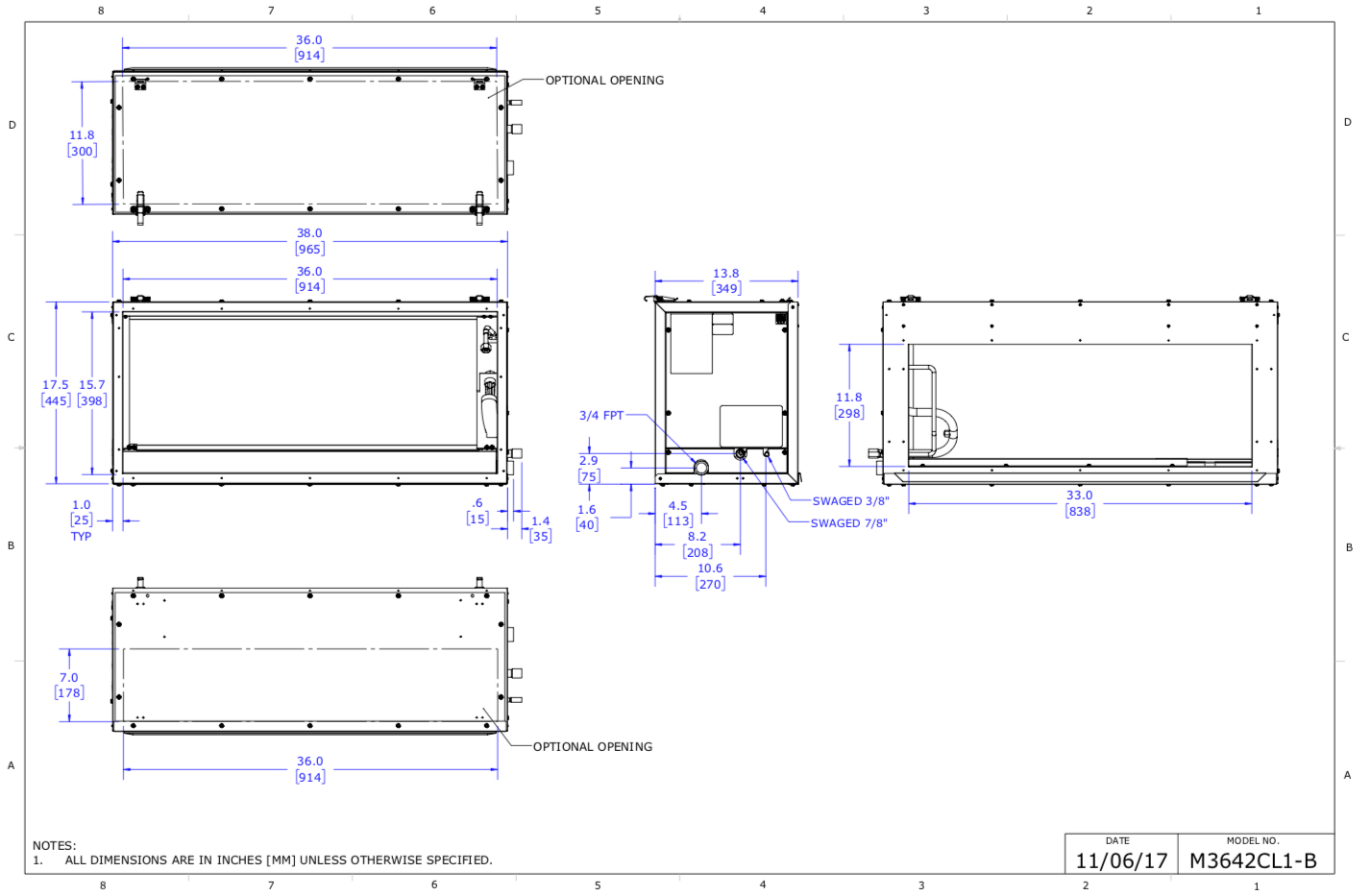

- M3642CL1-B Dimensional Data (PDF)
- M3036CL1-H Installation Manual (PDF)
- Technote 115 — Air Cleaning and Filtering Devices (PDF)
Ships in 42x16x20 in pkg; 78 lb
