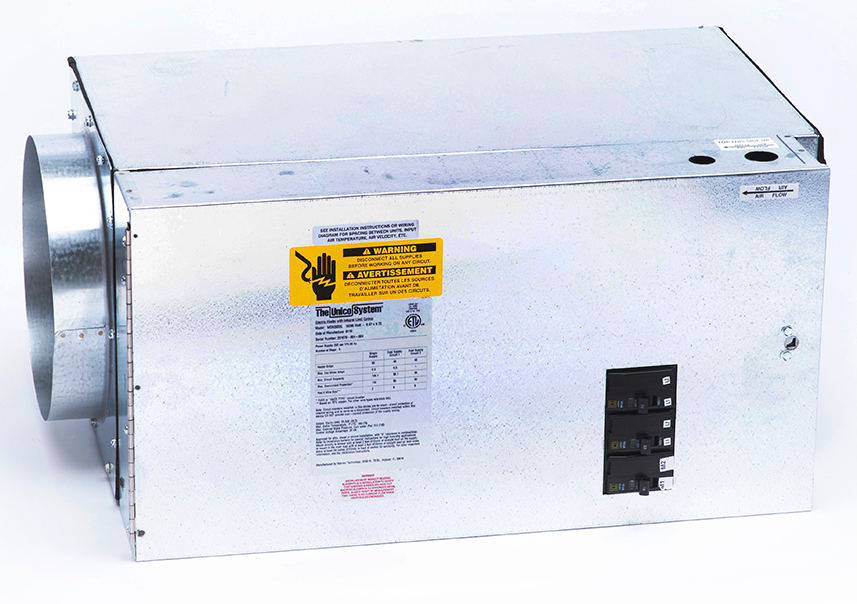

WON2002-C - Furnace, Electric, 20 kW, 1P/240V (matches 3036, 3642, 4860)

WON2002-C — a furnace — electric, 20 kW, 1P/230V (matches 3036, 3642, 4860).

Key features

• Single Phase 240V, comes with both 10 in Dia and 9.5 in sq. supply adapter, mounting collar, and restrictor plate.
• The electric furnace module can be attached directly to one of our blower units or it can be installed in the supply air duct downstream from the blower unit as a duct heater. This model is rated for 20kw at 240 volts single phase. The heater contains 2 circuit breakers as disconnects and one 15 amp breaker to power the blower unit. There are multiple safety's built in such as a pressure air proving switch, fan relay switch, auto temperature limit and fuse links. The heater comes with a 10 in round start collar and a 11.5 in square start collar.
• 68,240 Btu/hr (20 kW).

Specifications

Applications

• For M3036 Series
• For M3642 Series
• For M4860 Series

Ships in 39x19x13 in pkg; 40 lb
