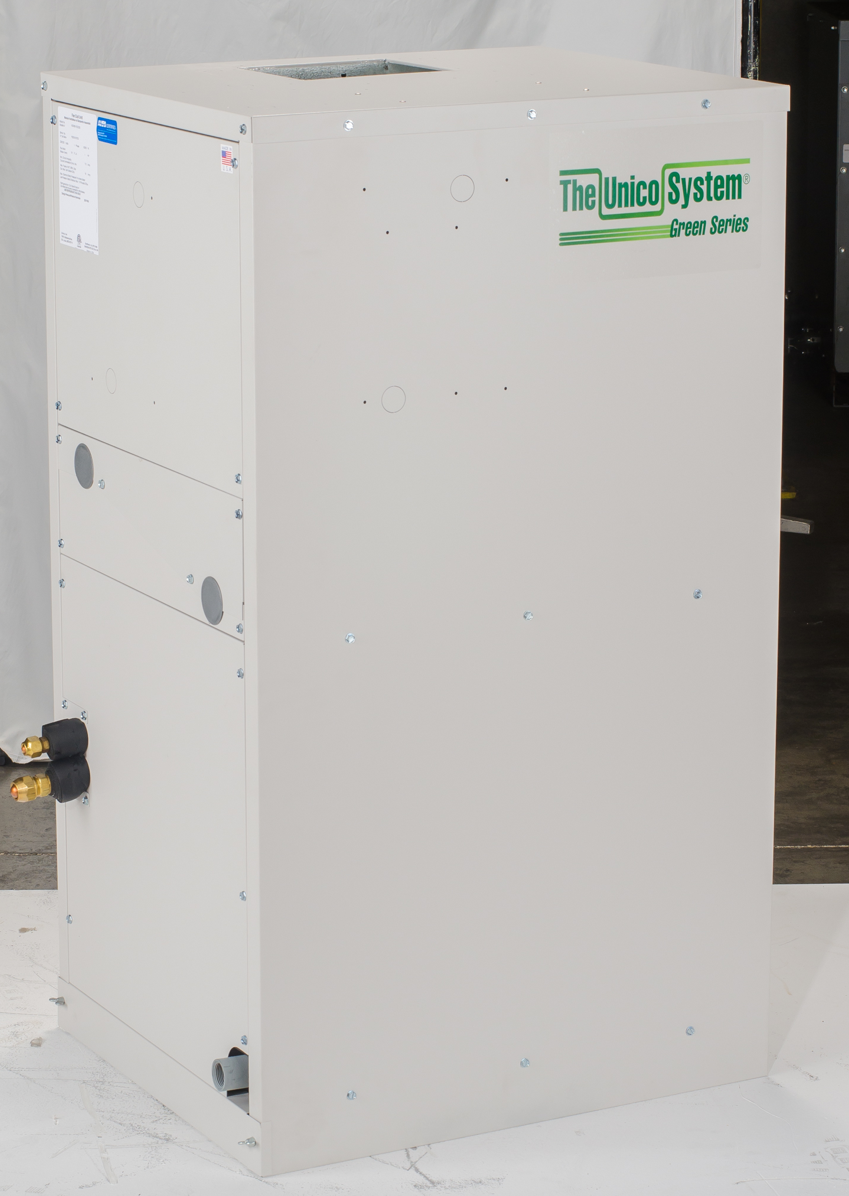

V3036B-1EC2CH - Vertical Air Handler, SCB, Variable Speed, 230V, Chilled Water, with HWC
SHIPPING
DIRECT SHIP USA/CANADA (FROM MISSOURI)
V3036B-1EC2CH — a vertical air handler — SCB variable speed, 120/208/230V, chilled-water, with HWC, A2L.
Key features
- Unico V3036B-1EC2CH 2.5-3 Ton Vertical Air Handler, Chilled Water, with Hot Water Coil.
- This model is our 2.5 to 3 ton model with 230 volt ECM blower and a chilled water coil.
Specifications
| Model Series | V-Series |
|---|---|
| Nominal Capacity | 36,000 Btu/hr (10.5 kW) |
| Tonnage | 2.5-Ton, 3-Ton |
| Installation Orientation | Vertical Upflow |
| Coil Type | Chilled Water, Hot Water |
| Motor Type | EC |
| Refrigerant Type | R-410A |
| Power Supply | 208-230/1/60 |
| Connectivity | USB |
| Certifications | ETL |
| Dimensions | 27 in x 25 in x 44 in |
| Weight | 191 lb |
Documents
- V3036B-1EC2CH Dimensional Data (PDF)
- Vertical Air Handler Specifications (PDF)
- V3036B-1EC2EH Dimensional Data (PDF)
- V3036B-1EC2BH Dimensional Data (PDF)
- V3036B-1EA2AH Dimensional Data (PDF)
- Dimensional Data (V3036I) (PDF)
- Dimensional Data (V3036) (PDF)
- Submittal Sheet (PDF)
- (14 additional document(s) available — contact us or see the resource library)
Ships in 27x25x44 in pkg; 248 lb
