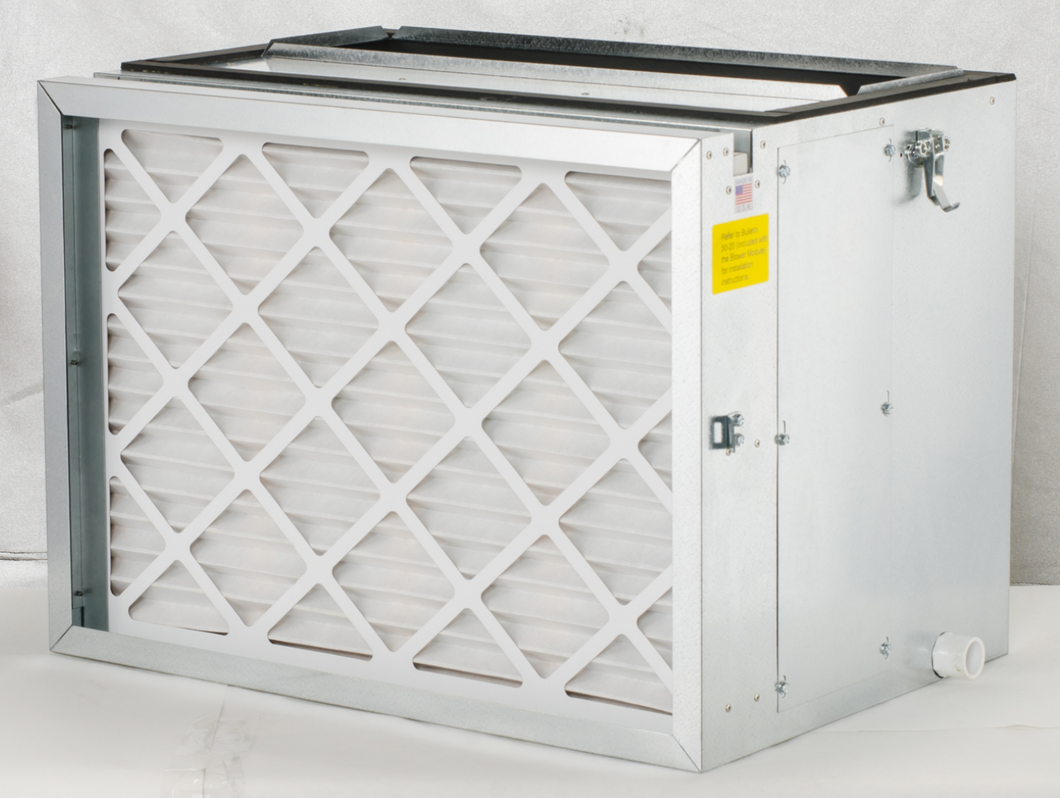

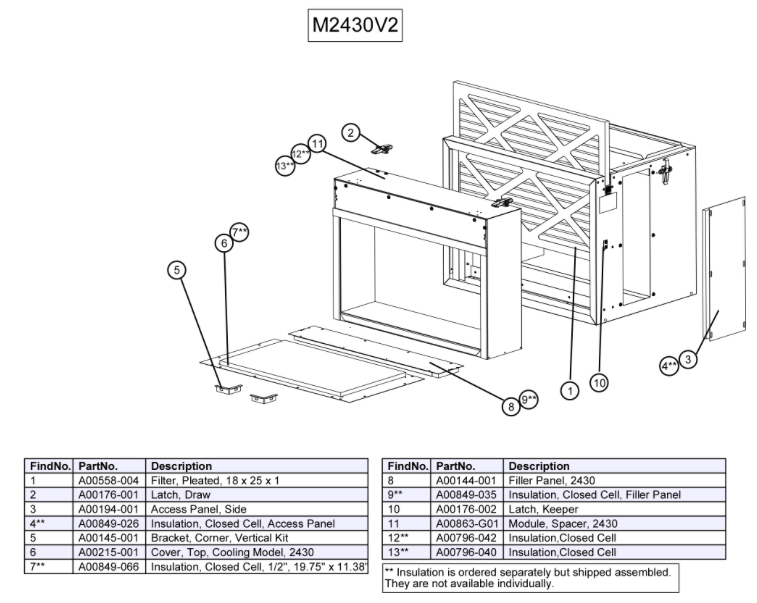

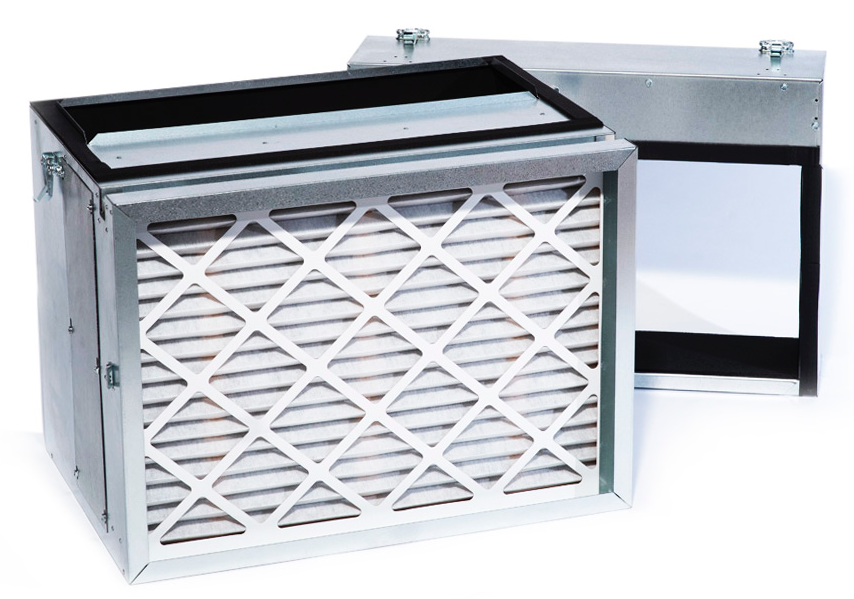

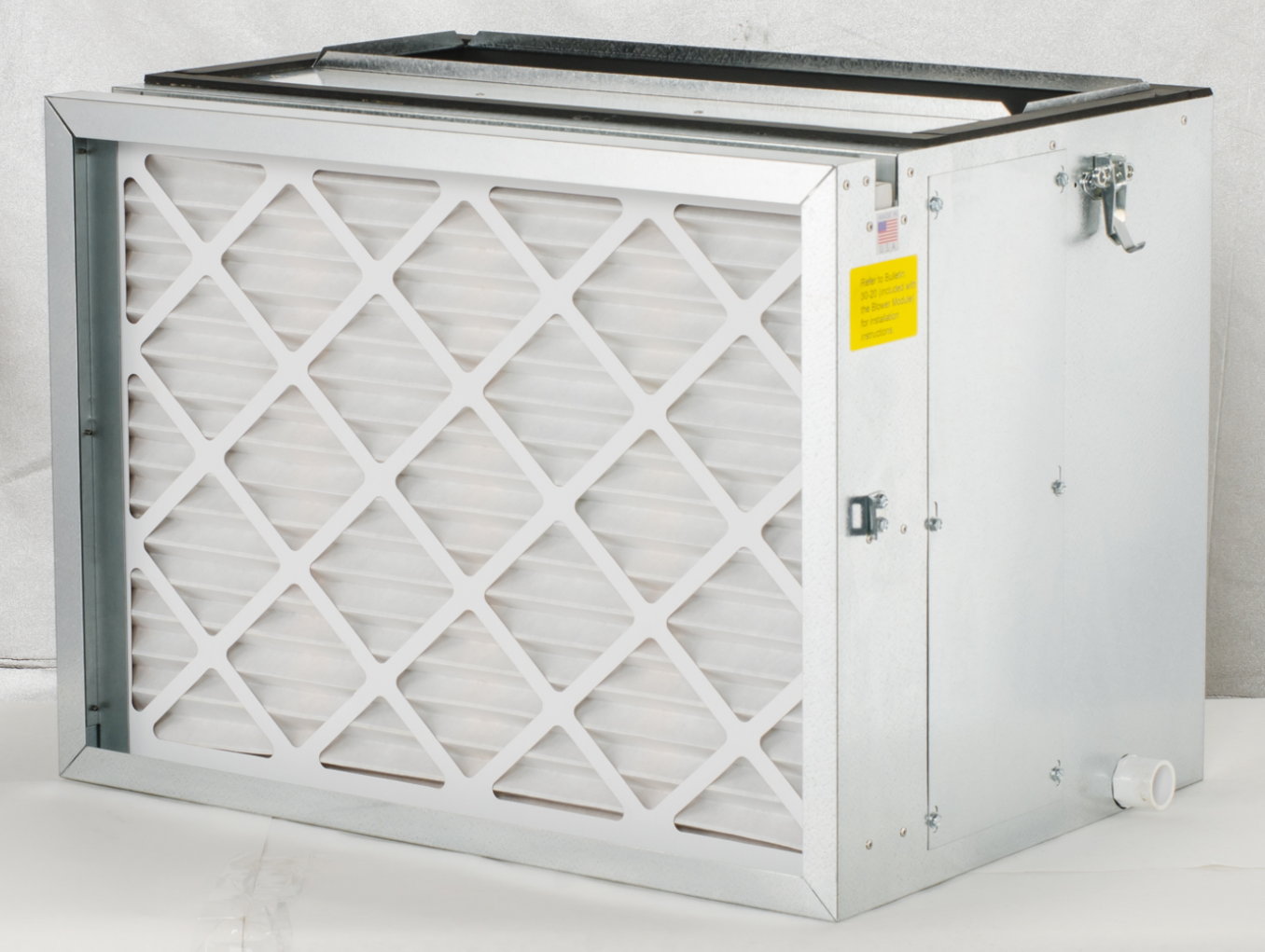

M2430V2 - Vertical Plenum Module (includes Spacer & Filter)

M2430V2 — a vertical plenum module (comes with spacer & filter).

Key features

• 2 - 2.5 Ton Modular Unit.
• All TXVs are R410-A with Chatleff Fitting.
• Vertical plenum module with secondary drain pan; base with filter rack and filter that can house a hot water coil as an option.

Specifications

Documents

• Dimensional Data (M2430R1) (PDF)
• Unico System (M2430R1) (PDF)
• Dimensional Data (M2430V1) (PDF)
• Unico System (M2430V1) (PDF)
• Technote 115 — Air Cleaning and Filtering Devices (PDF)
• M3036R1 Dimensional Data (PDF)
• Unico System (M3036R1) (PDF)
• M3036V1 Dimensional Data (PDF)
• (11 additional document(s) available — contact us or see the resource library)

Ships in 29x27x20 in pkg; 33 lb
