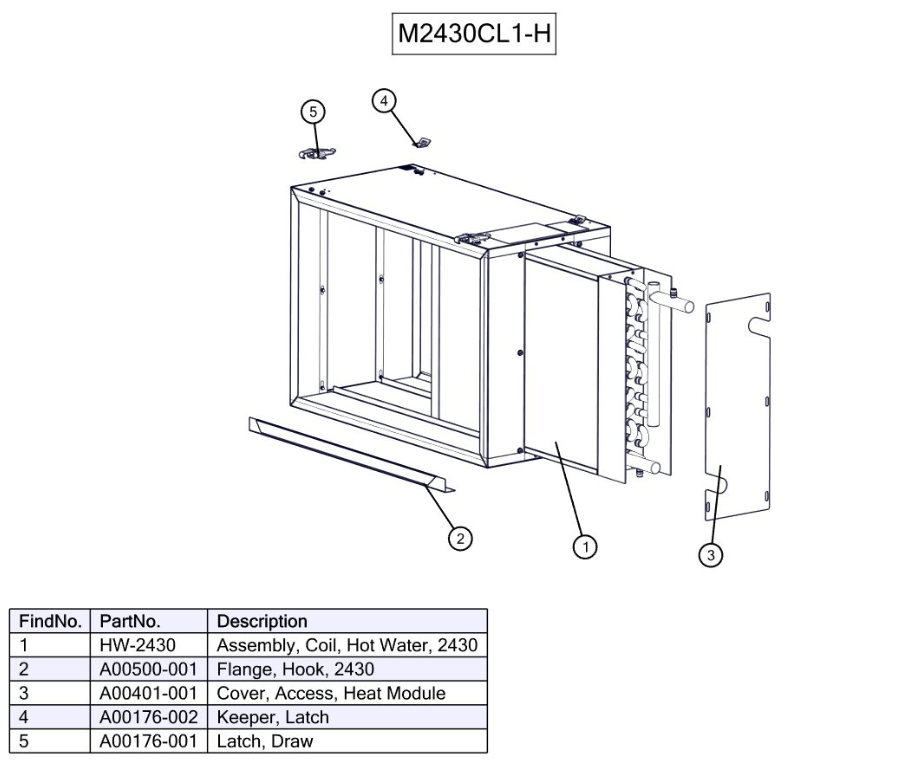

![M2430CL1-H - Hydronic Module, Heating (with Hot Water Coil)](http://highvelocityoutlets.com/cdn/shop/products/HotWaterCoilModule_M2430partnumbers.png?v=1584397272&width=924)

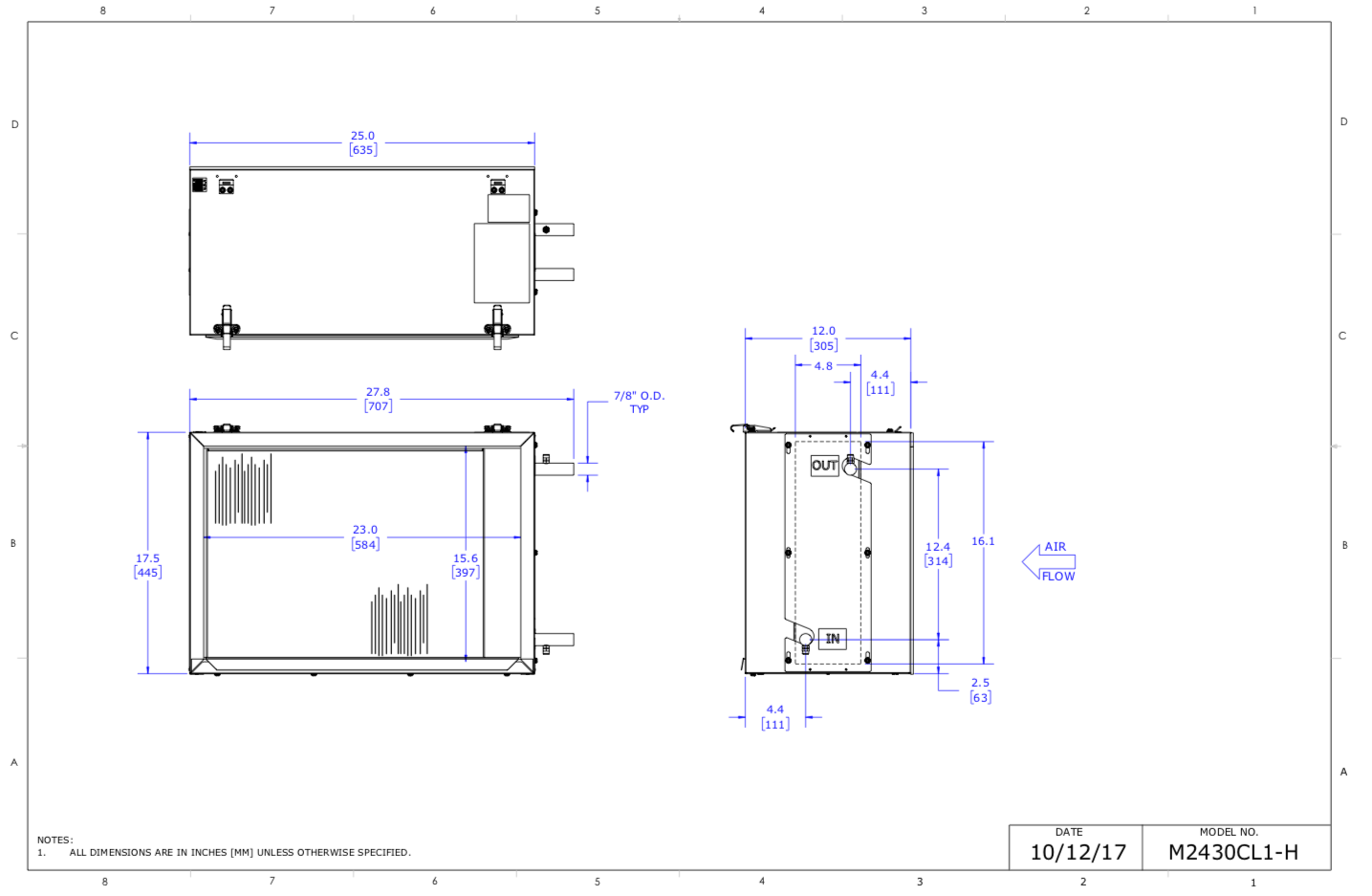

![M2430CL1-H - Hydronic Module, Heating (with Hot Water Coil)](http://highvelocityoutlets.com/cdn/shop/products/M2430CL1-Hspecificationsdimensionaldataunicosystem.png?v=1584397272&width=1435)

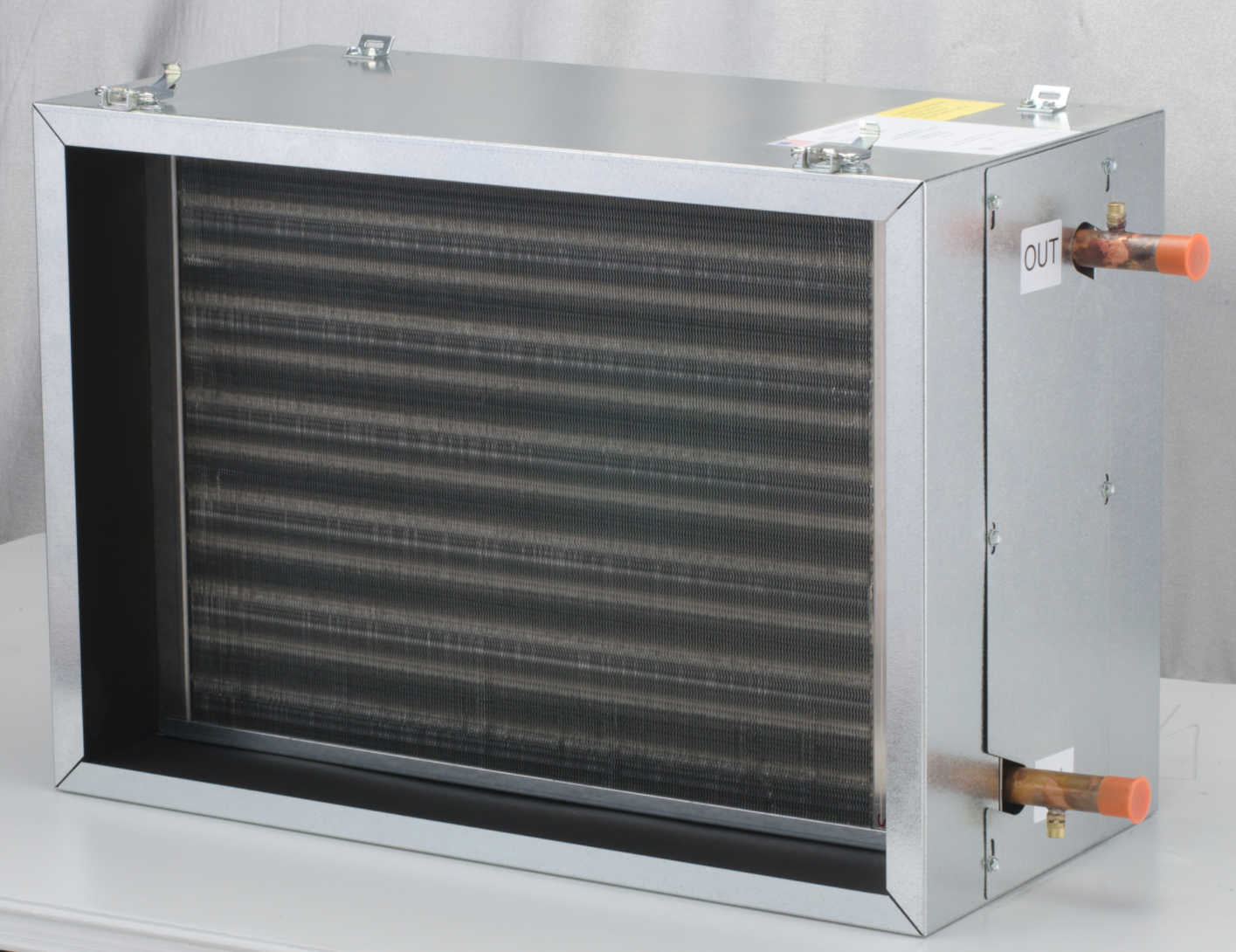

![M2430CL1-H - Hydronic Module, Heating (with Hot Water Coil) - highvelocityoutlets-com](http://highvelocityoutlets.com/cdn/shop/products/Unico_Air_Handler_2430_-_Hydronic_Module_Heating_with_Hot_Water_Coil_-_M2430CL1-H.png?v=1584397272&width=1415)
M2430CL1-H - Hydronic Module, Heating (with Hot Water Coil)
Ships in 32x16x19 inch pkg; 53 lbs
UNICO | M2430CL1-H
Hot Water Coil Module
Description:
- 2 to 2.5 ton hot water coil module (with the hot water coil)
- Unico Model: 2430
- Tonnage: 2.0-Ton, 2.5-Ton
- Model Series: M-Series
- Nominal Capacity: 30,000 Btu/hr (8.7 kW)
- Coil Type: Hot Water
- Material: Multiple
Features:
- Unico System designed and built heating units can be easily installed with the matching blower and cooling modules
- The heating module can be matched to a blower module for a heating only system or it can be matched with both a blower and a cooling module for a system that heats and cools
- The slide-in hot water/glycol heating coil is supplied separately
- If potable water is used, refer to TechNote 112 for disinfection procedures.
- Unico designed and fabricated hot water coils are constructed of evenly spaced corrugated aluminum fins mechanically bonded to copper tubes
- The tubes are ½-in. diameter on staggered centers. Full-collar fins provide greater tube-fin contact for excellent heat transfer. Each coil is pressure tested at the factory
- Bleed and drain valves are provided on the headers outside the cabinet.
- Matching coils are available separately, or with the cabinet
- Slide in hot water coil is supplied separately
- 22 gauge galvanized steel construction
- Easy snap latches
