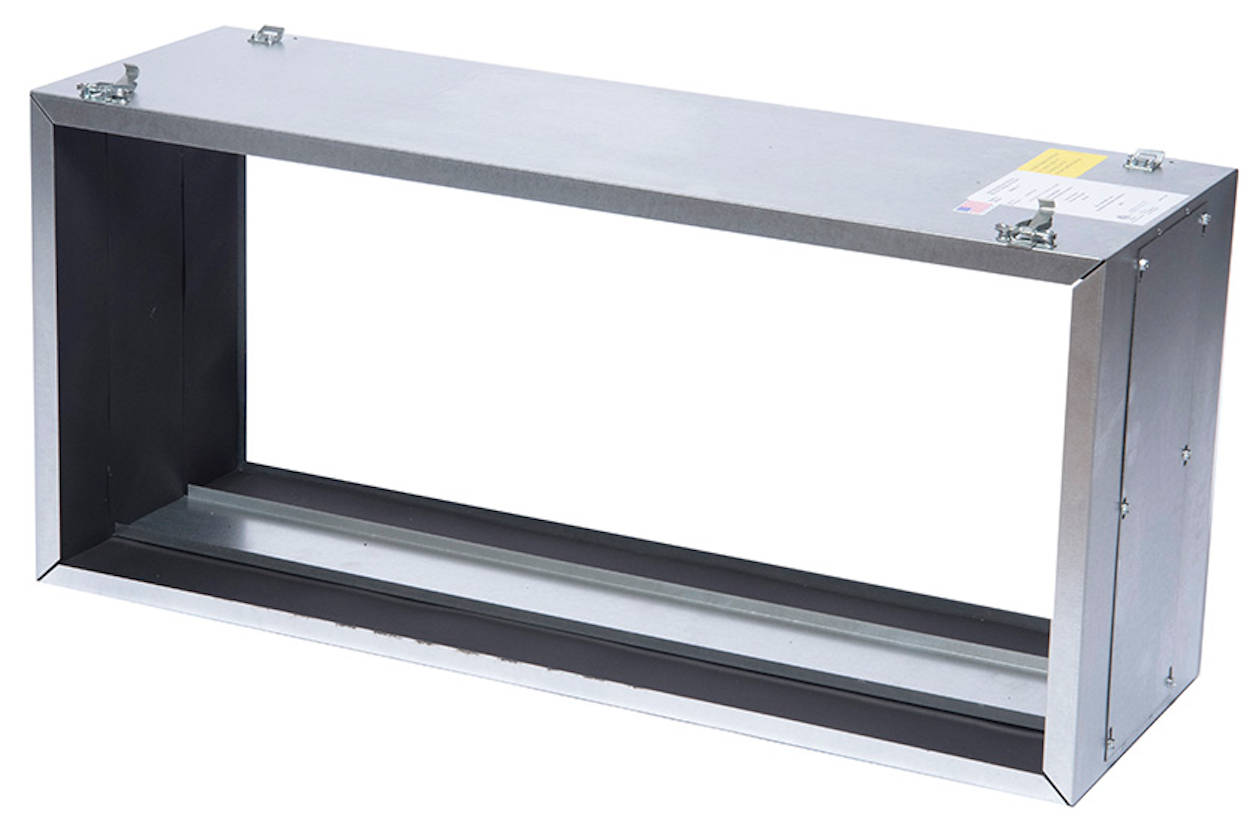

M4860CL1-X - Hydronic Module, Heating (without Hot Water Coil)

M4860CL1-X — a heating module (no hot-water coil).

Key features

• 4 - 5 Ton Modular Unit.
• All TXVs are R410-A with Chatleff Fitting.
• This is the 4 to 5 ton hot water coil module (without the hot water coil). The part number for the hot water coil is HW-4860.
• 60,000 Btu/hr (17.5 kW).

Specifications

Documents

• M-Series Heat Pump Installation Supplement (Bulletin 30-024) (PDF)
• M4860CL1-E Dimensional Data (PDF)
• M Series Heating Module (PDF)
• M4860CL1-C Submittal (PDF)
• Submittal Sheet (PDF)
• Cooling Module (refrigerant) (PDF)
• Technote 115 — Air Cleaning and Filtering Devices (PDF)
• M Series Chilled Water Coil Module (PDF)
• (9 additional document(s) available — contact us or see the resource library)

Ships in 45x16x19 in pkg; 28 lb
