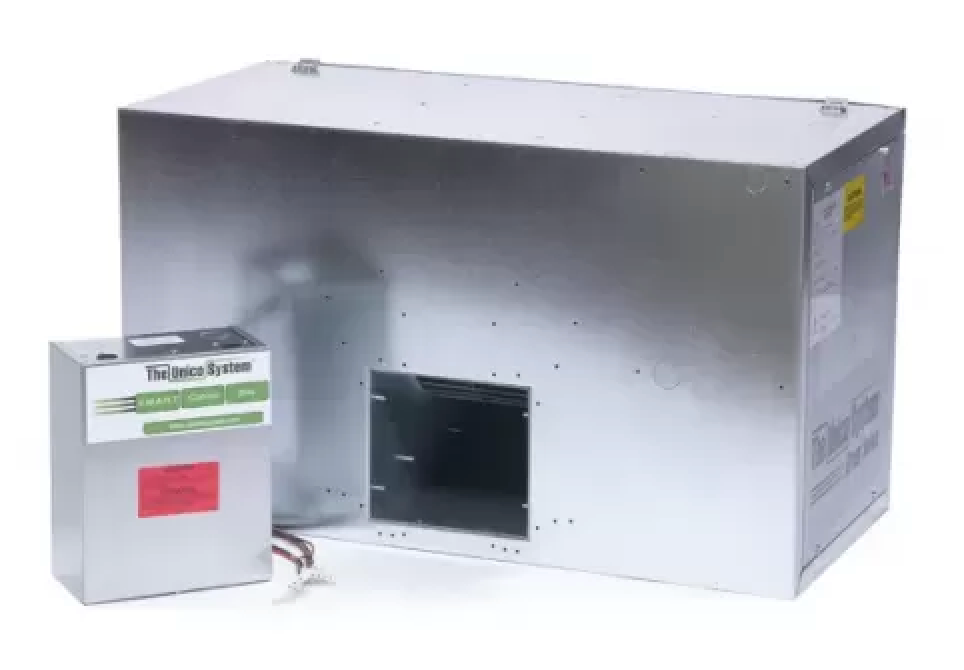

M3642BL2-EC2 - Module, Blower, SCB Variable Speed ECM, 120/208/230V (Wifi Board)

M3642BL2-EC2 — an SCB-controlled variable-speed ECM blower module (120/208/230V), with WiFi-enabled control board.

Key features

• Unico M3642BL2-EC2 Blower Module, 3-3.5 Ton, SCB Variable Speed ECM 120/208/230V.
• Unico M3642BL2-EC2 Blower Module, 3-3.5 Ton, SCB Variable Speed ECM, 120/208/230V (Wifi Board).
• 3-3.5 Ton Modular Unit (FCU) All TXVs are R410-A with Chatleff Fitting - Module, Blower, S.M.A.R.T. Control, Variable Speed EC Motor, 120/208/230V.
• This is the 3 to 3.5 ton left hand 208/230v ECM blower module.
• The Unico System modular blowers are designed for use with the Unico System small-duct high-velocity (SDHV) system.
• The blowers exceed the U.S. Department of Energy requirements for SDHV systems requiring a minimum external static pressure of 1.2 in of water (0.3 kPa) at the rated airflow when installed with the compatible Unico cooling module.

Specifications

Documents

• Submittal Sheet (PDF)
• M3642BL1-EC2 Dimensional Data (PDF)
• M Series Blower Module Specifications (PDF)
• Technote 115 — Air Cleaning and Filtering Devices (PDF)

Ships in 42x16x20 in pkg; 73 lb
