Hi-Velocity WCM-100 Chilled Water Module Chilled Water Coil

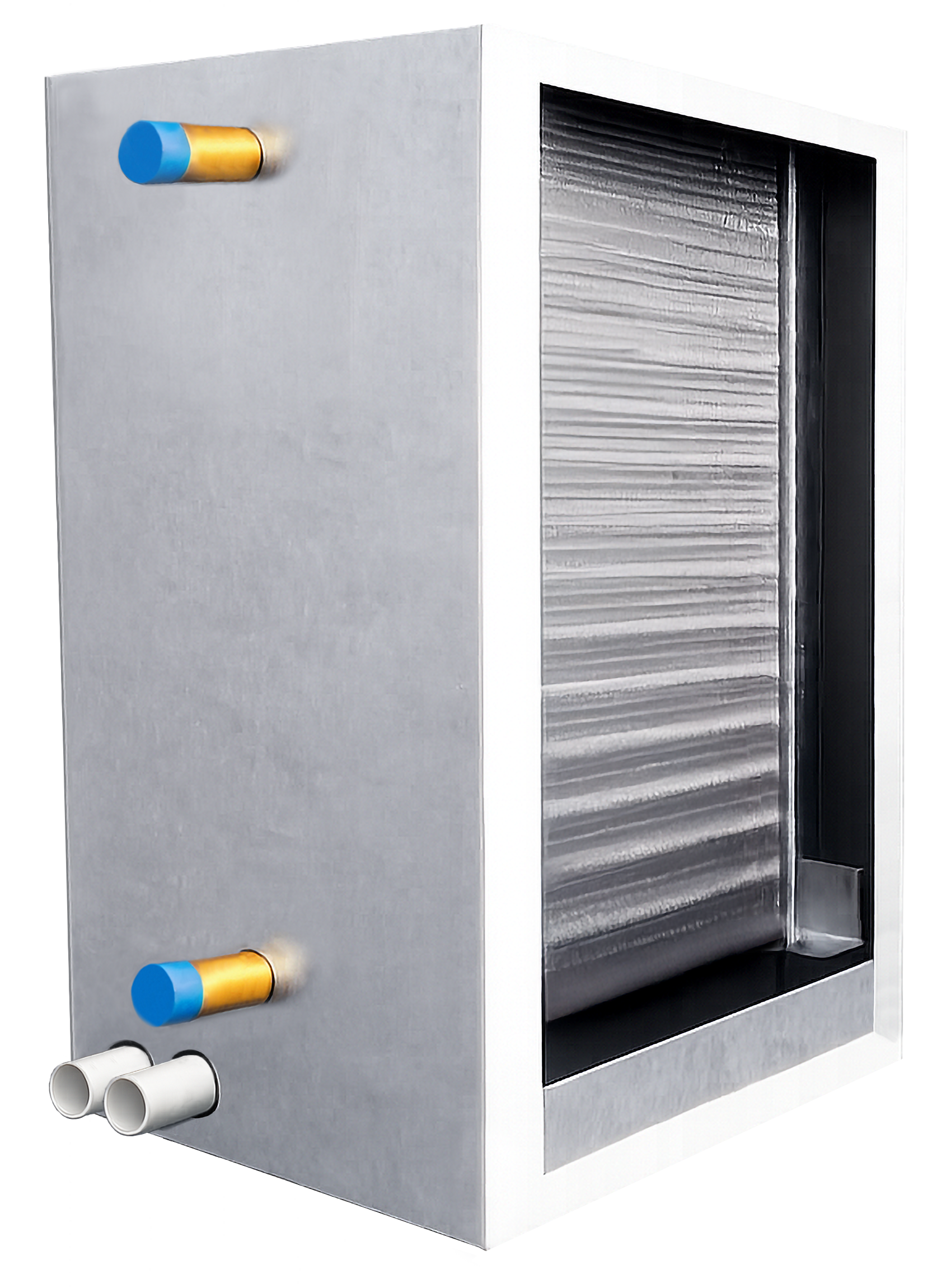

The WCM-100 Chilled Water Module is a high-capacity hydronic water coil installed on the return-air side of the air handler as a retrofit add-on cooling module. Chilled-water primary use, but also usable for heating with water temperatures up to 130°F (54°C). Rated for 42–60 MBH cooling at 42°F EWT.
Key features
- Copper tubing with aluminum fins (0.006 in / 0.152 mm)
- Drain pan with two 3/4" drain connections (primary + secondary)
- Two L-mounting brackets for retrofit attachment
- Approved for potable water systems
- Reverse-usable for heating up to 130°F EWT
Specifications
| Coil family | Hi-Velocity WCM Series |
|---|---|
| Cooling capacity (MBH) | 42–60 MBH (12.3–17.6 kW) @ 42°F EWT |
| GPM flow rating | 10 GPM (0.63 L/s) |
| Supply line | 3/4" |
| Return line | 3/4" |
| Drain connection | 3/4" M CPVC |
| Compatible air handlers | HE-Z/HE-B/HE-100/101, HV-100/101, LV-Z/LV-B-1050/1051, LV-120/140 |
| Shipping weight | 44 lbs |
| Shipping dimensions | 30"x11"x20" |
Applications
Retrofit chilled-water cooling for an existing Hi-Velocity SDHV air handler. Also serves as the cooling coil for water-source heat pumps and reverse-cycle chiller installations. Use the WBM base module in new-build installations.
