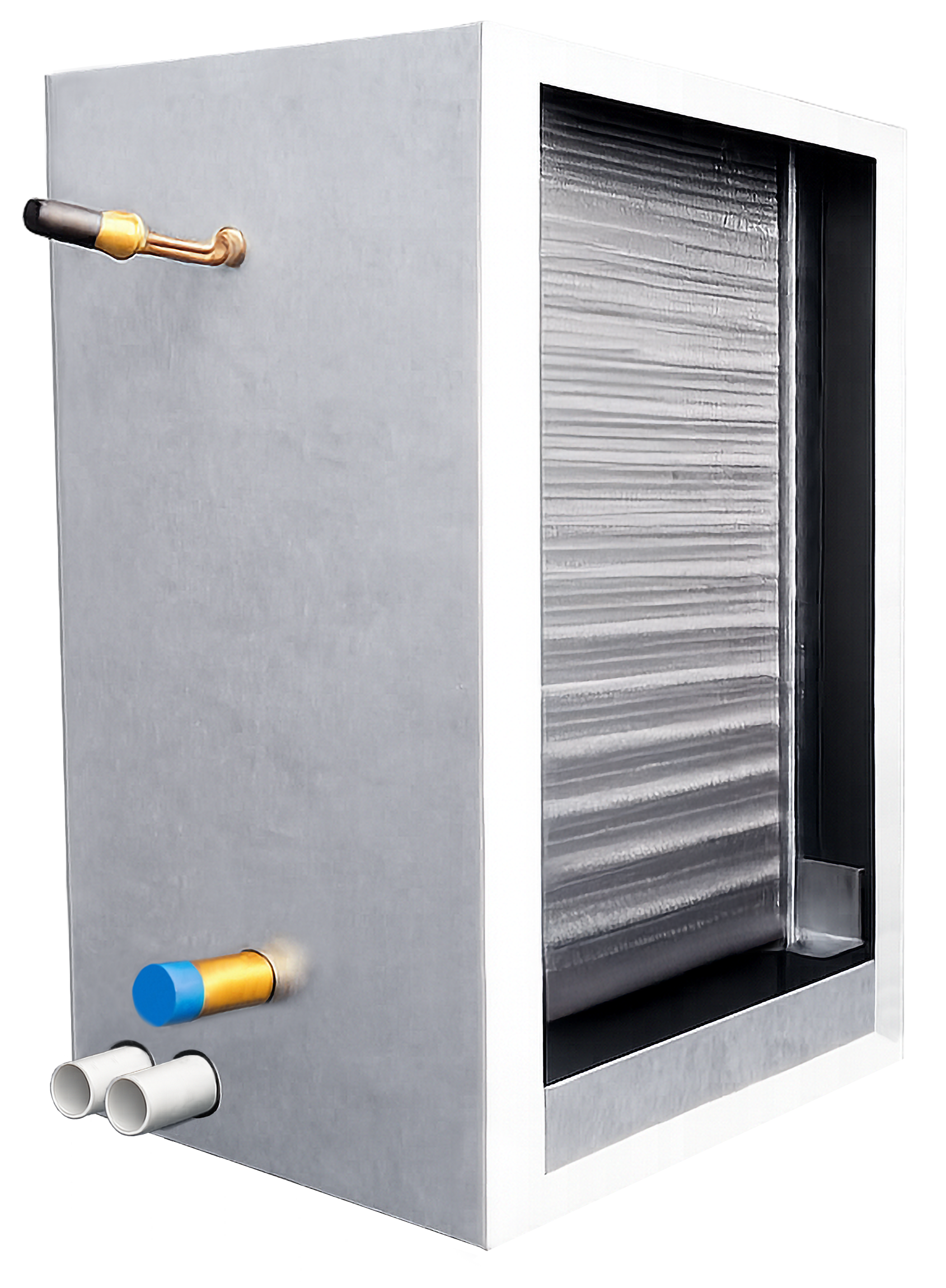

Hi-Velocity RCM-I-100 Cooling Module Refrigerant Coil
The RCM-I-100 Cooling Module is the RCM-I-100 Refrigerant Cooling Module sized to pair with the HVS-60 (5-ton) inverter-drive heat pump. Heat-pump-ready — the built-in expansion valve includes a check valve, so no field-added TXV is required at the indoor coil.
Key features
- Copper tubing with aluminum fins
- 16 Ga galvanized end-sheets and drain pan
- Two 3/4" drain-pan connections (primary + secondary)
- Factory-installed R-410A TX expansion valve with heat-pump-ready check valve
- Freeze-stat included
- mounts on the air handler as an add-on cooling coil (retrofit-friendly, uses L-mounting brackets)
Specifications
| Coil family | Hi-Velocity RCM-I Series |
|---|---|
| Nominal size | RCM-I-100 |
| Refrigerant type | R-410A |
| Paired heat pump | HVS-60 (5-ton) |
| Shipping weight | 45 lbs |
| Shipping dimensions | 30"x11"x20" |
| Ships as | For use with HVS-60 5-Ton Heat Pump (Can also be used with HVS-24, HVS-36) Fits HE-Z/HE-P/HE-B/HE/HV-100/101 (3.5 - 5 Ton) |
Applications
Use with the paired HVS variable-speed heat pump for zoned residential heat-pump installs. The internal check valve means one coil handles both cooling and heat-pump reversing without a second field-installed valve.
Documents
Hi-Velocity RCM-I-100 Cooling Module Refrigerant Coil
Sale price$1,443.00 USD
