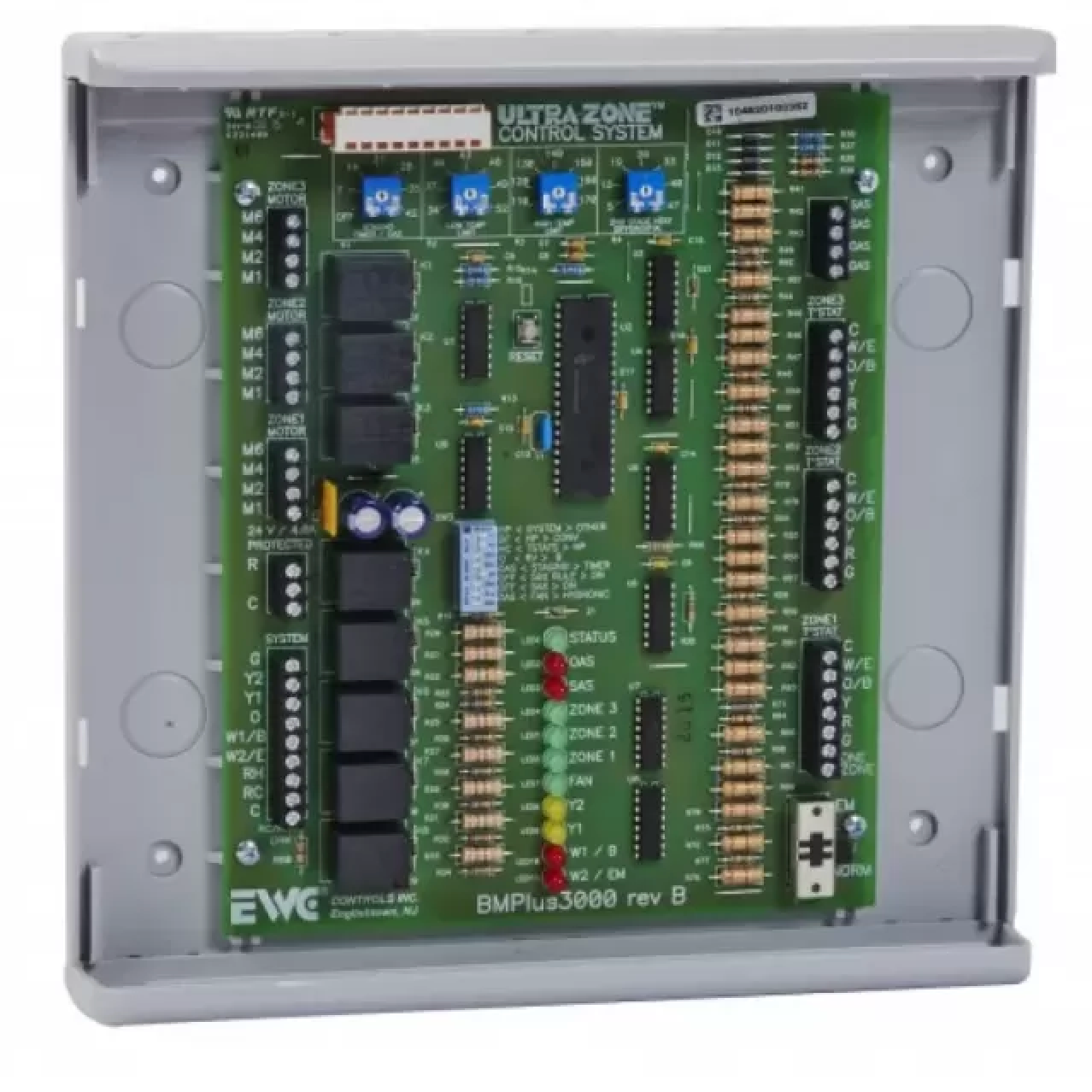

EWC BMPLUS-3000 - Zone Control Panel

Ships in 13x13x13 inch pkg; 3 lbs

NUMBER OF ZONES: 3 Zones, expandable to 5 or 7 zones with the addition of 1 or 2 Model XM-2 expansion modules.

COMPATIBLE EQUIPMENT:

• Gas/Electric/Hydro – Up to 2 Stages Heating and 2 Stages Cooling.
• Heat Pump Conventional – Up to 3 Stages Heating and 2 Stages Cooling.

COMPATIBLE THERMOSTATS: Any single stage Heat/Cool Thermostat or 2 Stage Heat, 1 Stage cool Heat Pump Thermostat.

COMPATIBLE DAMPERS: EWC Models URD, ND, RSD and SID. Any 24vac 3 Wire or 2 Wire damper.

ACCESSORIES: Model SAS – Supply air sensor (Included). Model OAS - Outdoor Air Sensor. Model CPLS – Coil Protection Lockout Switch.

ADDITIONAL FEATURES:

• Staging via Adjustable On-board Timer or OAS. (7 to 42 Minutes or 7° to 42°F)
• 50% Rule to limit staging if less than half the total zones are demanding Heating or Cooling.
• Supply Air Temperature Monitoring to help protect HVAC equipment.
• 100% Dual Fuel Compatible.
• On Board LED’s indicate system operation.
