Unico, Inc.

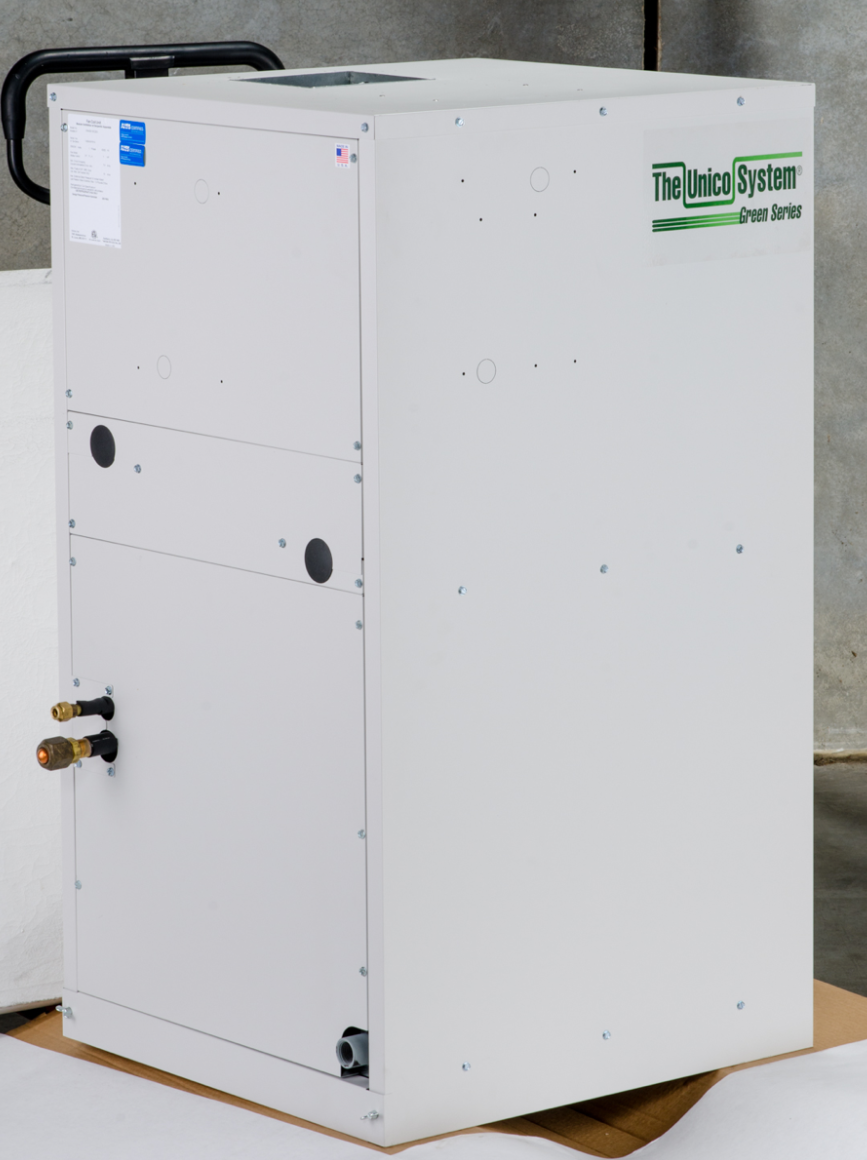

V3642B-1EC2BHC - Vertical Air Handler, SCB, Variable Speed, 120V - 208/230V, 3 Row Coil, (AC) with HWC, E-Coated

$4,922.75 $7,864.50

Ships in 31x26x46 inch pkg; 263 lbs

This is our Coated V-Series one piece fan coil unit for vertical up flow applications in a closet or basement. This model is our 3 to 3.5 ton model with 230 volt ECM blower and cooling DX coil which includes a R410A TXV and a hot water coil. It can be connected to a 3 to 3.5 ton condensing unit from a third party.

Unico Model 3642
Tonnage 3.0-Ton, 3.5-Ton
Model Series V-Series
Motor Type EC
Nominal Capacity 42,000 Btu/hr (12.3 kW)
Coil Type Refrigerant
Power Supply 208-230/1/60
Brand Unico
Installation Orientation Vertical Upflow
Refrigerant Type R-410A
Connectivity USB
Certifications ETL
