M3036CL1-H - Hydronic Module, Heating (with Hot Water Coil)
SHIPPING
DIRECT SHIP USA/CANADA (FROM MISSOURI)
M3036CL1-H — a heating module with an integrated hot-water coil.
Key features
- 2.5 - 3 Ton Modular Unit.
- All TXVs are R410-A with Chatleff Fitting.
- 36,000 Btu/hr (10.5 kW).
Specifications
| Model Series | M-Series |
|---|---|
| Nominal Capacity | 36,000 Btu/hr (10.5 kW) |
| Tonnage | 2.5-Ton, 3-Ton |
| Installation Orientation | Horizontal, Vertical Upflow |
| Coil Type | Hot Water |
| Material | Multiple |
| Certifications | UL |
| Height | 17.5 in |
| Width | 30 in |
| Depth | 12 in |
| Weight | 76 lb |
| Airflow Range | 300 to 900 CFM |
| Coil Water Volume | 1.1 gal (4.2 L) |
| Design Pressure | 150 psig (1034 kPa) |
| Number of Rows | 4 |
| Water Connection | 7/8 in ODF Sweat |
Documents
- M3036CL1-H Installation Manual (PDF)

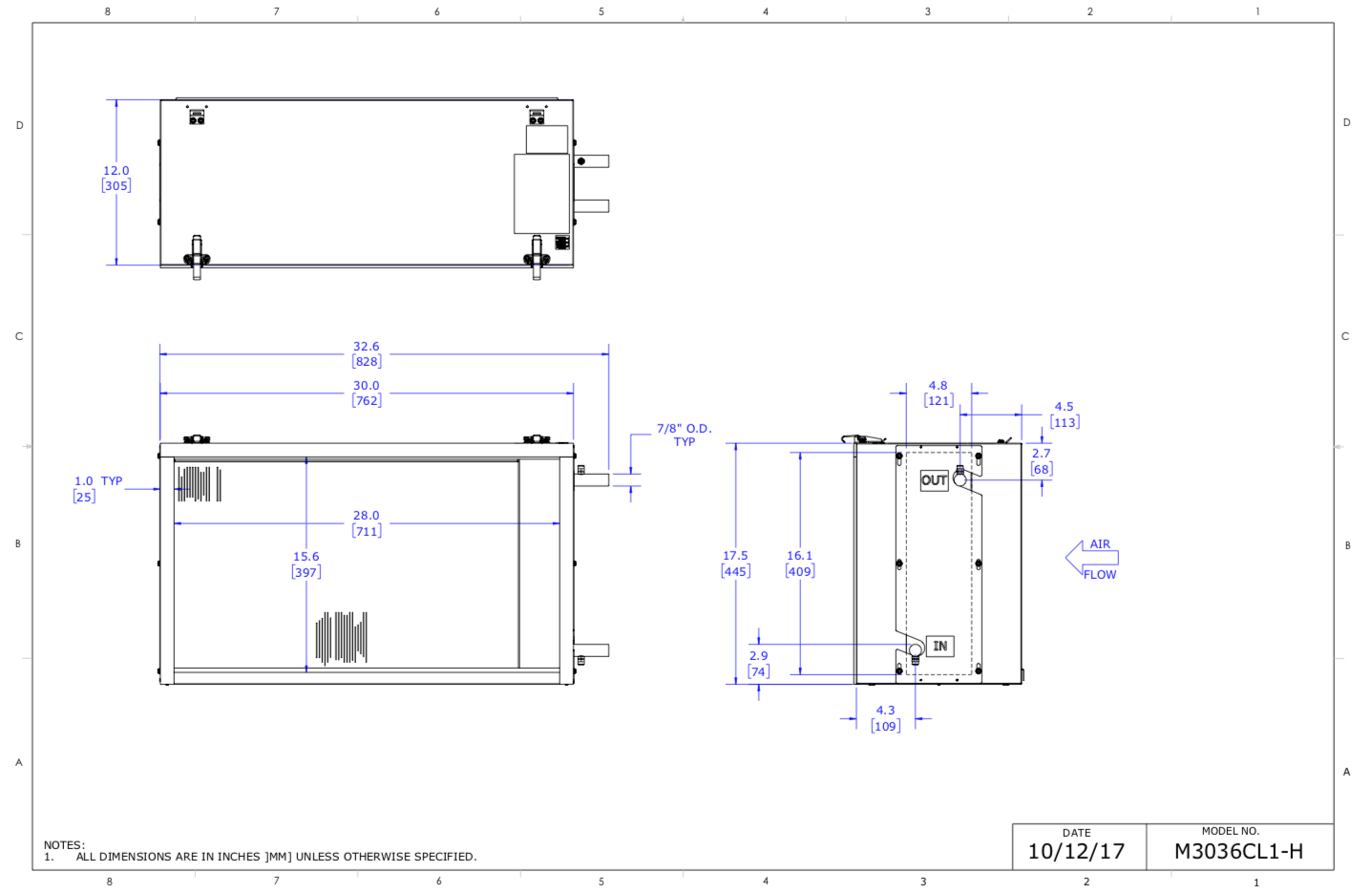

- M3036CL1-H Dimensional Data (PDF)
- M3036CL1-H Technical Data (PDF)
- M3036CL1-H Specifications (PDF)
- M3036CL1-H Submittal Sheet (PDF)
Ships in 38x16x19 in pkg; 76 lb
